FlexiHAL Encoder Breakout Rev B1 PCBA
FlexiHAL Encoder Breakout Rev B1 PCBA
Couldn't load pickup availability
21 in stock

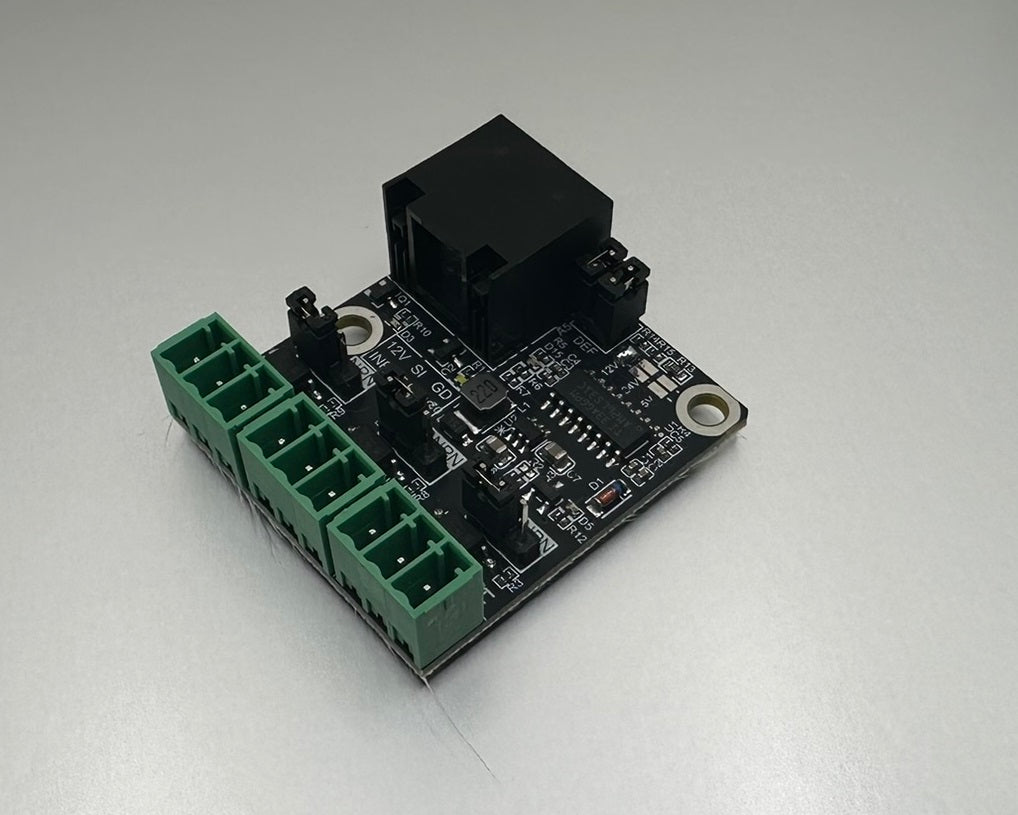

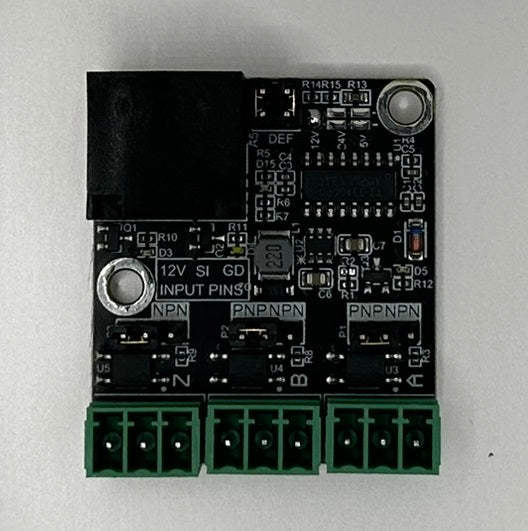

The encoder breakout board allows you to use the encoder inputs as auxiliary opto-coupled inputs. The pinout matches the 3 pin inputs of the FlexiHAL. By default the inputs are powered with 12V and can be used with either NPN or PNP sensors or switches by setting the jumpers.
This breakout board is compatible with all versions of FlexiHAL. Please be sure to read the documentation in the link below to ensure correct jumper selection for your revision of FlexiHAL.
For complete documentation on this OSHW design, see this Github repository:
https://github.com/Expatria-Technologies/EST_Accessory_PCB
Some 3d printed enclosures for the breakouts are posted to this Github repository:
https://github.com/Expatria-Technologies/Mods-Accessories
Shipping & Returns
Shipping & Returns
Shipping will be calcuated at checkout. Products are warranted for defects in manufacturing. As per OSHW license, no warranty of fitness for purpose is expressed or implied.
Dimensions
Dimensions
170mm x 135mm x 60mm
Share
-
Open Source Hardware
This board is distributed under the terms of the CERN Open Hardware Licence Version 2 - S. We guarantee that your board will be free from manufacturing defects, but otherwise it is provided 'as is.' Please review the design files and make sure that it meets your needs.
Support is provided primarily through our Discord Server:
https://discord.gg/bSEXy7GhcZ
