Flexi-HAL EST Button Breakout PCBA

Flexi-HAL EST Button Breakout PCBA

$7.99 CAD
$7.99 CAD
Sale Sold out

Expatria Technologies Flexi-HAL breakout board.

These simple boards were developed with community feedback to make it easier to manage the wiring of a machine.  These are meant to connect to the RJ45 connectors on the FlexiHAL controller.  This is the Button Breakout PCBA:

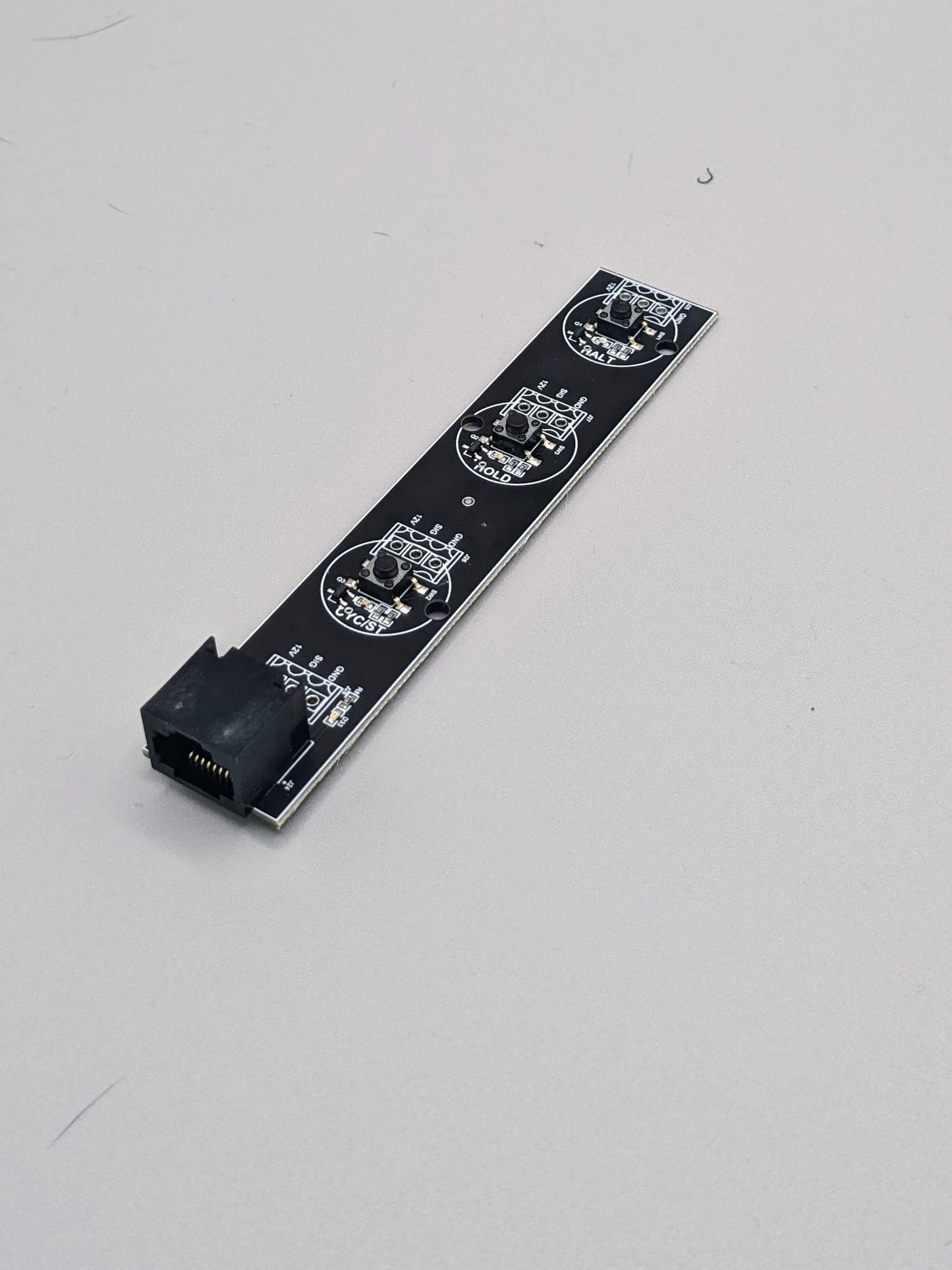

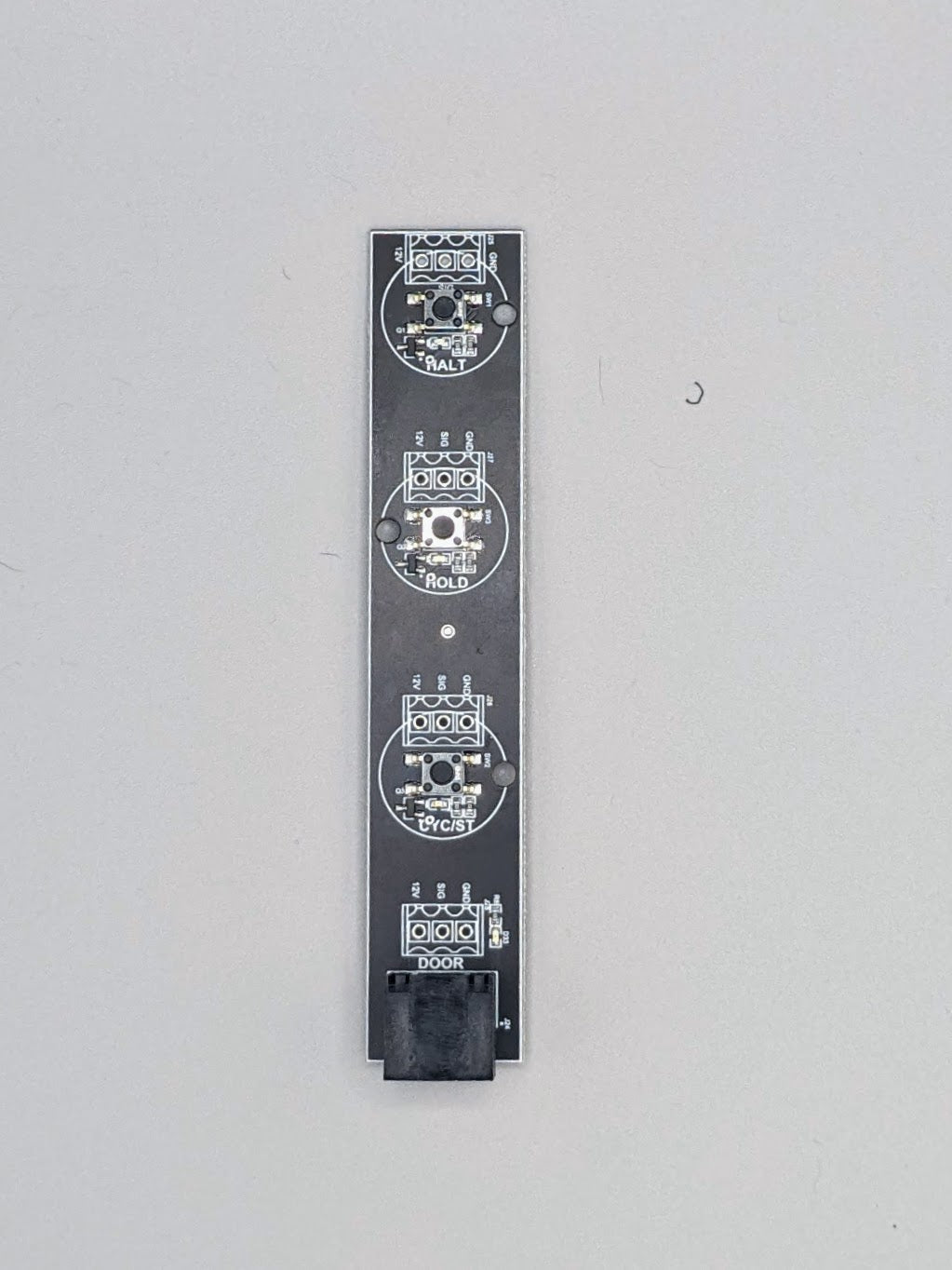

1) The user switch breakout has pushbuttons and LEDs integrated for RUN, HOLD and HALT.  In addition the DOOR signal is present on the board in the case that the breakout is mounted to the machine enclosure.

For complete documentation on this OSHW design, see this Github repository:
https://github.com/Expatria-Technologies/EST_Accessory_PCB

Some 3d printed enclosures for the breakouts are posted to this Github repository:
https://github.com/Expatria-Technologies/Mods-Accessories

Shipping & Returns

Shipping will be calcuated at checkout. Products are warranted for defects in manufacturing. As per OSHW license, no warranty of fitness for purpose is expressed or implied.

Dimensions

170mm x 135mm x 60mm

View full details

  • Open Source Hardware

    This board is distributed under the terms of the CERN Open Hardware Licence Version 2 - S. We guarantee that your board will be free from manufacturing defects, but otherwise it is provided 'as is.' Please review the design files and make sure that it meets your needs.

    Support is provided primarily through our Discord Server:
    https://discord.gg/bSEXy7GhcZ
