Expatria Technologies

FlexiHAL Encoder Breakout PCBA

FlexiHAL Encoder Breakout PCBA

$9.00 USD
$9.00 USD
Sale Sold out

Expatria Technologies Flexi-HAL breakout boards.

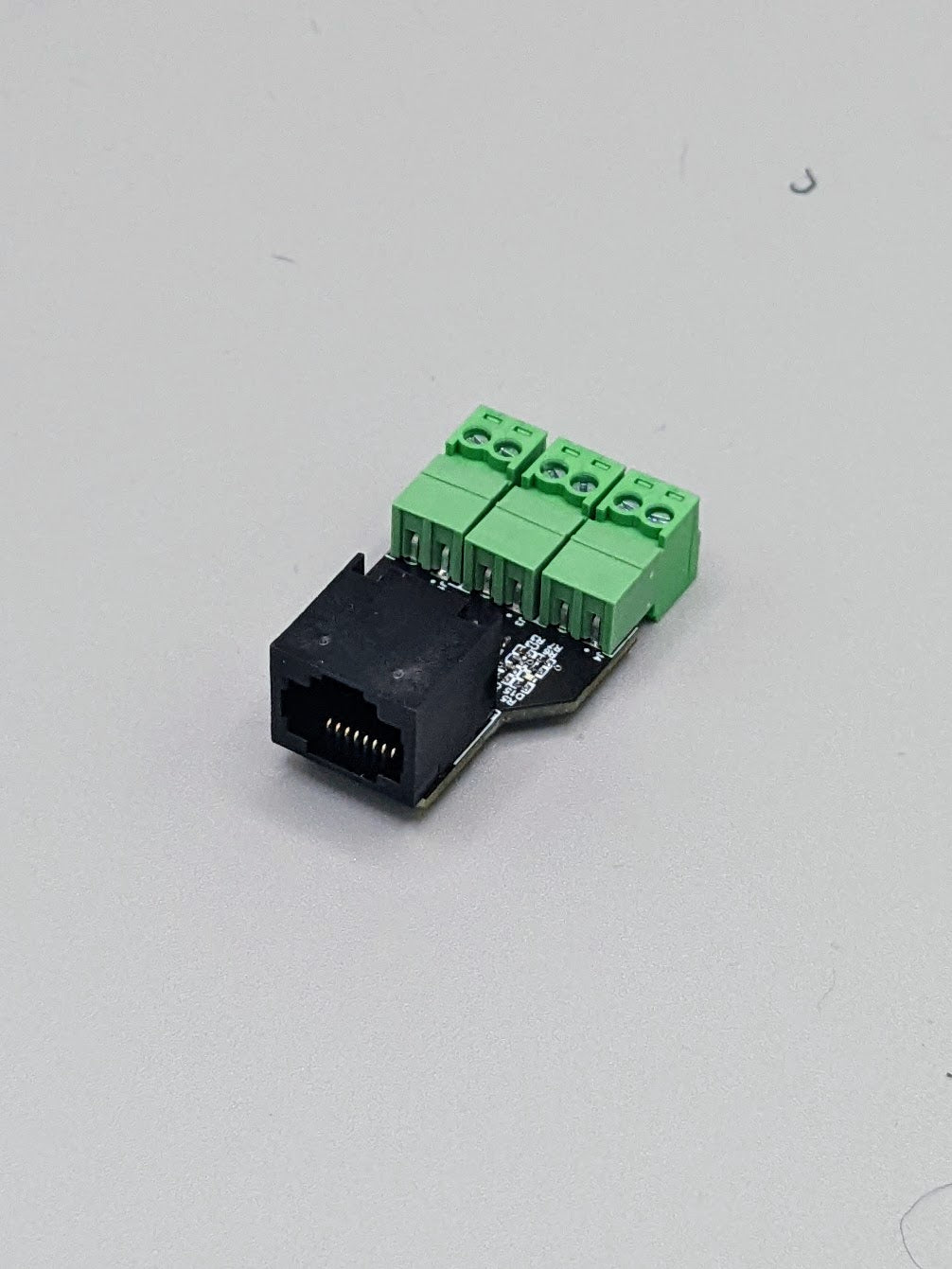

These simple boards were developed with community feedback to make it easier to manage the wiring of a machine.  These are meant to connect to the RJ45 connectors on the FlexiHAL controller.  This is the Encoder Breakout PCBA:

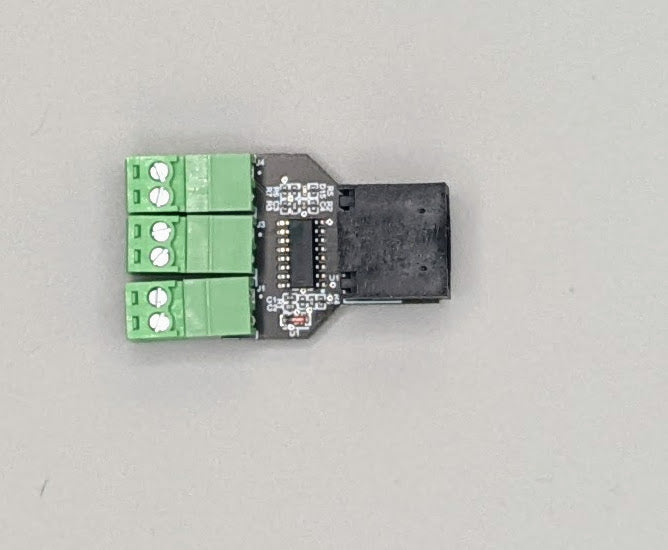

The encoder breakout exposes the high-speed inputs from the encoder interface on the Flexi-HAL.  These can for example be used as auxiliary inputs with M66 codes.  The breakout includes a differential transmitter to ensure the best possible signal integrity at high switching rates.

For complete documentation on this OSHW design, see this Github repository:
https://github.com/Expatria-Technologies/EST_Accessory_PCB

Some 3d printed enclosures for the breakouts are posted to this Github repository:
https://github.com/Expatria-Technologies/Mods-Accessories

Shipping & Returns

Shipping will be calcuated at checkout. Products are warranted for defects in manufacturing. As per OSHW license, no warranty of fitness for purpose is expressed or implied.

Dimensions

170mm x 135mm x 60mm

View full details

  • Open Source Hardware

    This board is distributed under the terms of the CERN Open Hardware Licence Version 2 - S. We guarantee that your board will be free from manufacturing defects, but otherwise it is provided 'as is.' Please review the design files and make sure that it meets your needs.

    Support is provided primarily through our Discord Server:
    https://discord.gg/bSEXy7GhcZ
